Reinforced Cabin
Thicker wall panels and protective bumper rails that take trolley impact without denting.
Goods lifts are judged on durability, not comfort. Loaded trolleys, pallets and equipment hit the walls and floor daily, so the cabin, doors and machine are specified to absorb it.

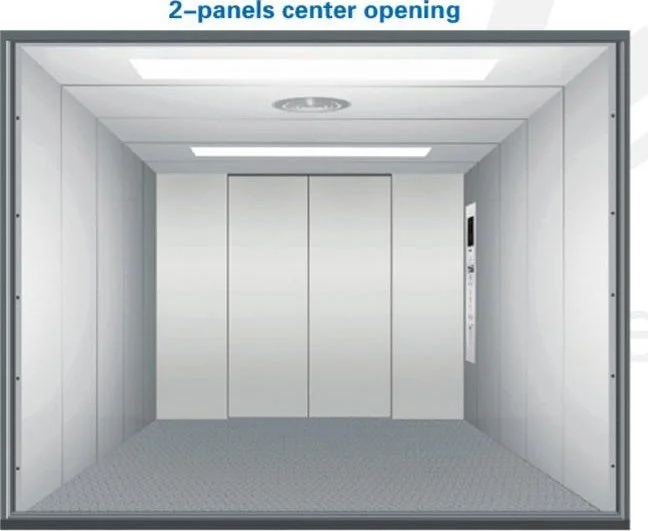

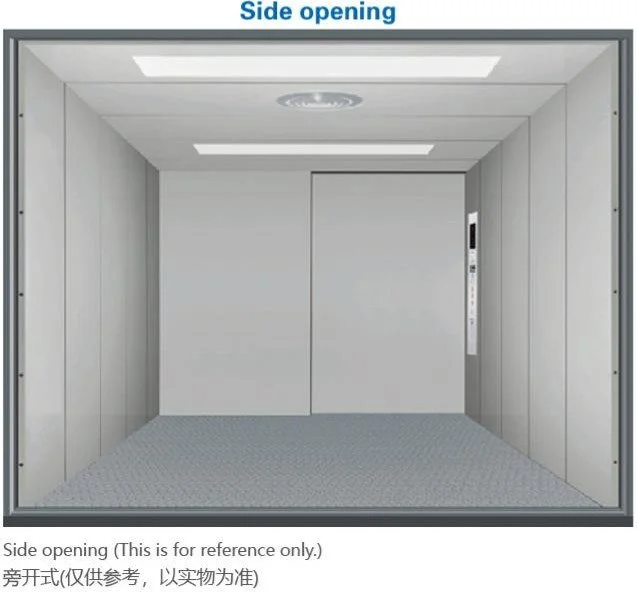

Door configurations and cabin finishes for freight duty, from side opening to four panel centre opening. Tap any option to view it full size.
Tell us your heaviest load and we will size the cabin around it. Request a quotation
Every component chosen to survive daily loading rather than look good in a brochure.
Thicker wall panels and protective bumper rails that take trolley impact without denting.
Steel plate flooring that grips under load and resists scoring from pallet wheels.
The lift refuses to move beyond its rated load, protecting both the machine and the operator.
Vertical bi parting or wide centre opening doors built for repeated trolley traffic.
Precise stopping so pallet trucks roll on and off without lipping at the threshold.
Machines and ropes sized for continuous duty, not occasional use, so service life holds up.
Cargo projects start with what you move, how heavy it is and how often.
We confirm the heaviest load, trolley or pallet size and daily cycle count.
Capacity, cabin size, door type and flooring specified in an itemised quotation.
Cabin and machine built to the load rating, then factory acceptance tested.
Installed, commissioned and load tested at full rated capacity before handover.
Monthly servicing recommended for industrial sites, since loading accelerates wear.
| Rated load | 1,000 kg to 10,000 kg and above on project basis |
| Speed | 0.25, 0.5 and 1.0 m/s |
| Drive type | Traction or hydraulic depending on load and travel |
| Cabin build | Reinforced steel panels, chequered plate floor, bumper rails |
| Door type | Vertical bi parting, wide centre opening or manual gates |
| Control | Simplex with loading bay call stations |
| Safety | Overload sensors, safety gear, overspeed governor, ARD |
| Standards | EN 81-20 / EN 81-50, ASME A17.1, local codes |
Moves raw material and finished goods between production floors all shift.
Pallet handling between storage levels with forklift compatible flooring.
Linen, catering and equipment moved separately from patient and visitor lifts.
Keeps housekeeping and kitchen traffic out of the guest lifts entirely.
Bring your project to Fast Elevators for reliable solutions, advanced technology and professional service, engineered for safety and long lasting performance.
